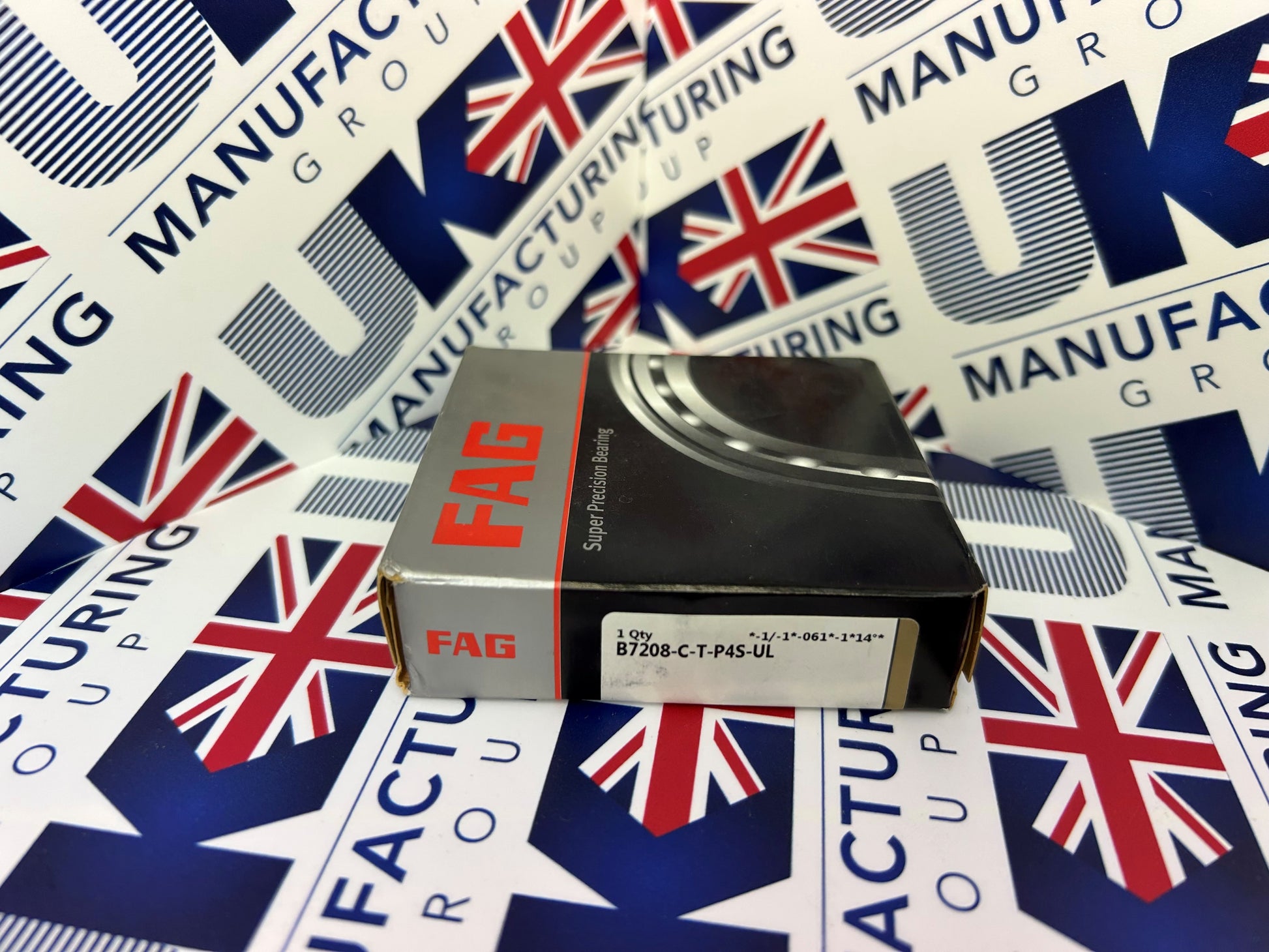

FAG 7208-C-T-P4S-UL
FAG 7208-C-T-P4S-UL
FAG 7208-C-T-P4S-UL spindle bearings are super precision single row angular contact ball bearings with solid outer and inner rings, ball and cage assemblies and solid window cages. The dimensions are standardised. Due to their very narrow tolerances, the spindle bearings are particularly suitable for applications involving the highest requirements for guidance accuracy, such as bearing arrangements for main spindles in machine tools.
B = Standard steel balls
70 = Medium series
C = 15 Degree contact angle
T = Laminated fabric cage, guidance on outer ring
P4S = FAG standard better than P4 to DIN 620
U = Single Bearing
L= Light preload
Main Dimensions & Performance Data
Inside: 35mm
Outside: 62mm
Width: 14mm
£183.59
in vatCouldn't load pickup availability
- Description
- Specification
- Documents
- Videos
FAG 7208-C-T-P4S-UL spindle bearings are super precision single row angular contact ball bearings with solid outer and inner rings, ball and cage assemblies and solid window cages. The dimensions are standardised. Due to their very narrow tolerances, the spindle bearings are particularly suitable for applications involving the highest requirements for guidance accuracy, such as bearing arrangements for main spindles in machine tools.
B = Standard steel balls
70 = Medium series
C = 15 Degree contact angle
T = Laminated fabric cage, guidance on outer ring
P4S = FAG standard better than P4 to DIN 620
U = Single Bearing
L= Light preload
Main Dimensions & Performance Data
Inside: 35mm
Outside: 62mm
Width: 14mm
