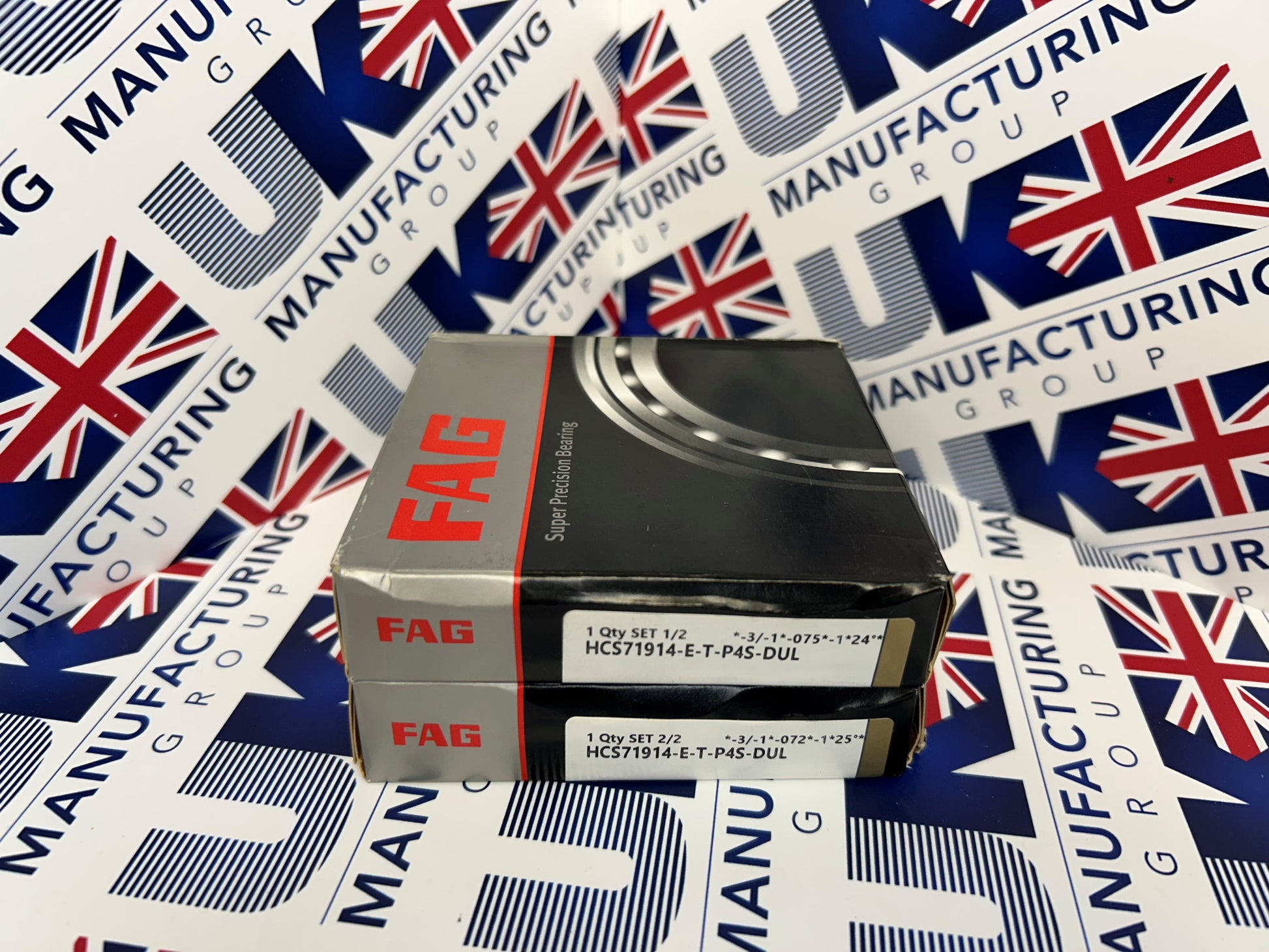

FAG HCS71914-E-T-P4S-DUL

The HCS71914-E-T-P4S-DUL FAG is a high-speed design hybrid spindle bearing (pair). This bearing type has seals on both sides, and small ceramic balls. Hybrid spindle bearings can reach very high speeds with very little heat generation and wear. Even at very high speeds, a high degree of rigidity is maintained. This makes the HCS71914-E-T-P4S-DUL FAG particularly suitable for use in high-speed- or machine tool spindles.

B = Standard steel balls
70 = Medium series
E = 25 Degree contact angle
T = Laminated fabric cage, guidance on outer ring
P4S = FAG standard better than P4 to DIN 620
U= Single Bearing
L= Light preload

Main Dimensions & Performance Data

Inside: 70mm
Outside: 100mm
Width: 16mm

Basic Load Rating: 32.5 kn
Basic Static Load Rating: 21.8 kn
