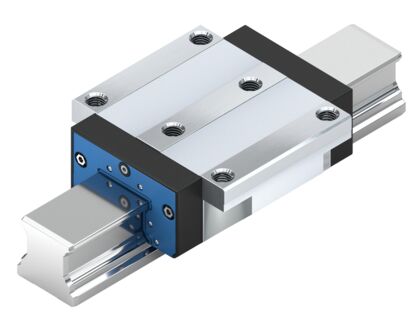

Rexroth R165152210 (KWC-055-FNS-C2-P-2)

The Rexroth R165152210 (KWC-055-FNS-C2-P-2) ball runner block is highly precise and characterized by the following product features:
Size 55
Format FNS: Width = flange, length = normal, height = standard
Runner block body made of unalloyed steel CS
Preload class C2: Medium preload
Accuracy class P: Precision
Without ball chain
Preserved
Without initial lubrication
Without attachment element, left (front reference edge)
Without attachment element, right (front reference edge)
45° angular lube nipples loosely attached.
Runner block body in standard version

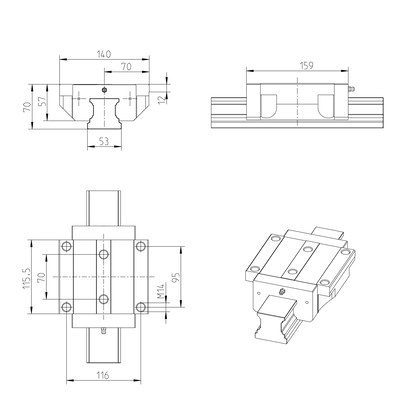

Overall length of the runner block = 159.0 mm
Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.

• Area of application: For high rigidity requirements
• Heavy-duty Ball Runner Block for heavy machine construction with extremely high load-bearing capacity
• Maximum rigidity in all load directions
• Improved rigidity under lift-off and side loading conditions due to two additional mounting screw holes at the centre of the ball runner block
• High torque load capacity
• Attachments on the ball runner block can be mounted from above and below
• Minimum lubrication quantities thanks to innovative channel design
• Smooth, quiet running thanks to optimally designed ball return and guideway
• Optimized entry-zone geometry and high number of balls minimize variation in elastic deflection
• Different preload classes
• End-face fastening thread for all attachments
• Can be used on all SNS ball guide rails
• Limitless interchangeability as all ball guide rail versions can be combined at will with all ball runner block versions.
